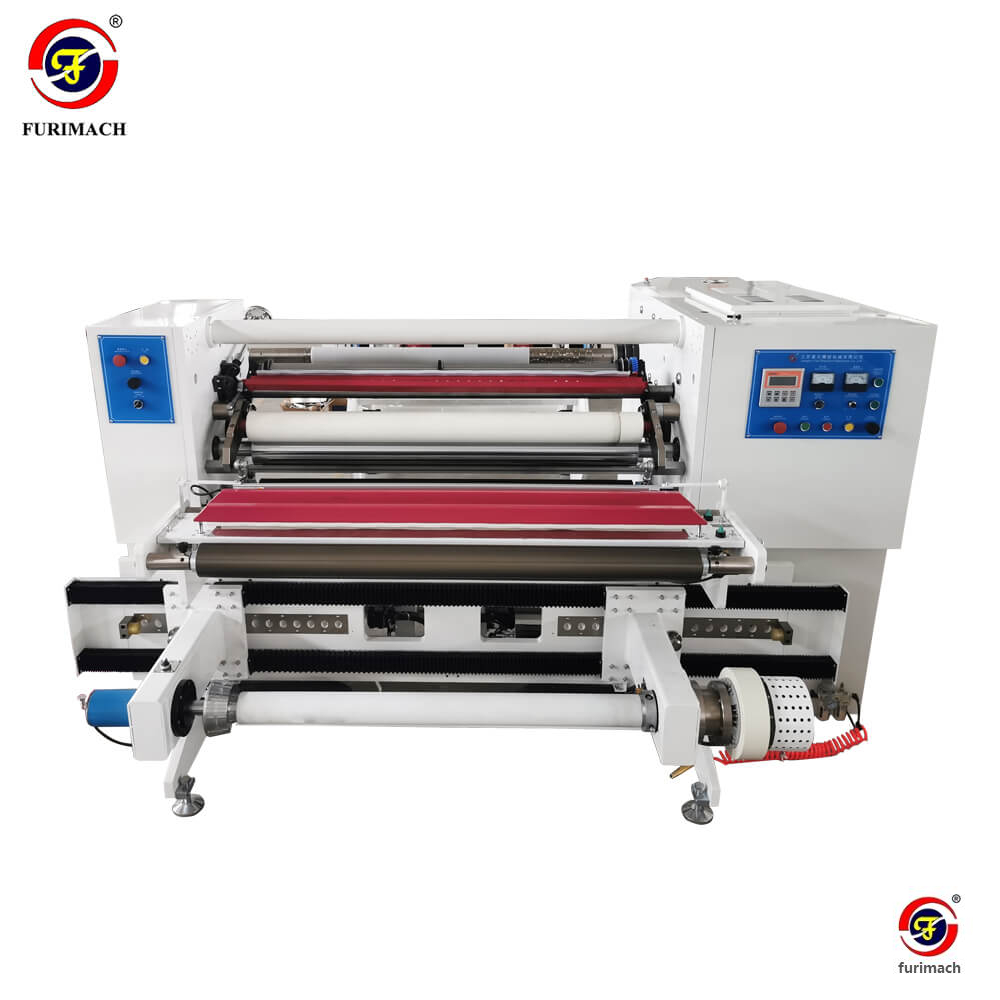

SLD-61241 Double-shaft Automatic Film Slitting Rewinding Machine

Application
Suitable for slitting & rewinding BOPP, CPP laminated film, release film, PET protection film, etc.
Quantity:
  • SLD-61241
  • FURIMACH
  • 84411000

Feature

1. The motor unit adopts three-motor connective control with high speed, stable tension and nice-looking products.

2. Unwind system adopts connect type shaft-less stand, left and right movement manually control.

3. Rewind part uses differential winding shafts to make sure each roll tension is well controlled. Still air shafts can also be installed.

4. Clamping devices are installed in front of rewind unit to fix the after-slit materials and keep after-slit tension and rewind position same.

5. Machine guide rollers are aluminum type, with hard anodizing treatment.

6. Edge waste treatment uses servo center type spool winder system.

7. Slitting part uses shear blades; bottom blade shaft uses air shaft. Razor blade system is optional.

8. Splice table: with air cylinder fixing device, for fast connecting web and saving labor’s time.



Optional Items

1.     Finished reel unloading device.

2.     Press roller system.

3.     Laminating function.


Technical Parameters

Max. unwind O.D.

800mm

Max. rewind O.D.

600mm

Min. slitting width

25mm

Machine width

1.3M/1.6M

Unwind Core I.D.

3"+6”

Rewind Core I.D.

3”

Machine max. speed

200M/Min

Power source

380V 3P 50HZ
