RED-3111
FURIMACH
84778000

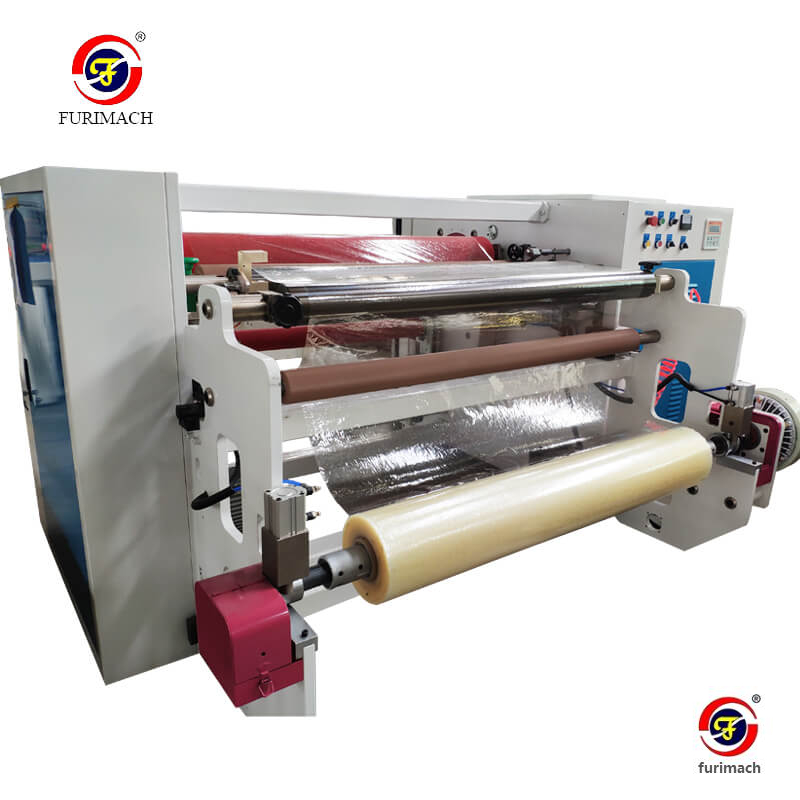

RED-3111 PET Silicone Tape, Kapton Tape Rewinding Machine (Bubble Free Model)
Application
Suitable for rewinding jumbo roll PET silicone tape, high temp polyimide (Kapton) tape, protective film, double-sided tape into log rolls.
Feature
1. Unwind unit with motor drive & inverter control |
2. Unwind unit ultrasonic web guide control system |
3. Rewind unit with silicone rubber lay-on roller |
4. Automatic smoothing device: this wipe down device fully eliminates the problem of wrinkling and air bubbles in the log rolls after rewinding. This device further ensures the smoothness of product. |
5. Automatic tension control |
Main Technical Parameters
Effective width | 1.3m 1.6m |
Max. unwind diameter | 800 mm |
Max. Rewind diameter | 300mm |
Max. Working speed | 150M/Min |
I.D. of paper core | 3" |
Main motor | 5HP*2 |
Air pressure | 6Bar |
