FTPT
FURIMACH
847780
Feature
1．PLC control system with touch panel operation
2．Backside & face side glue coating
3．Glue coating is average to save glue and other cost
4．Auto unloading, non-stop rewind and receive film
5．Simple operation, unwind & rewind by inverter motor control
6．Auto tension control, multi section auto edge control

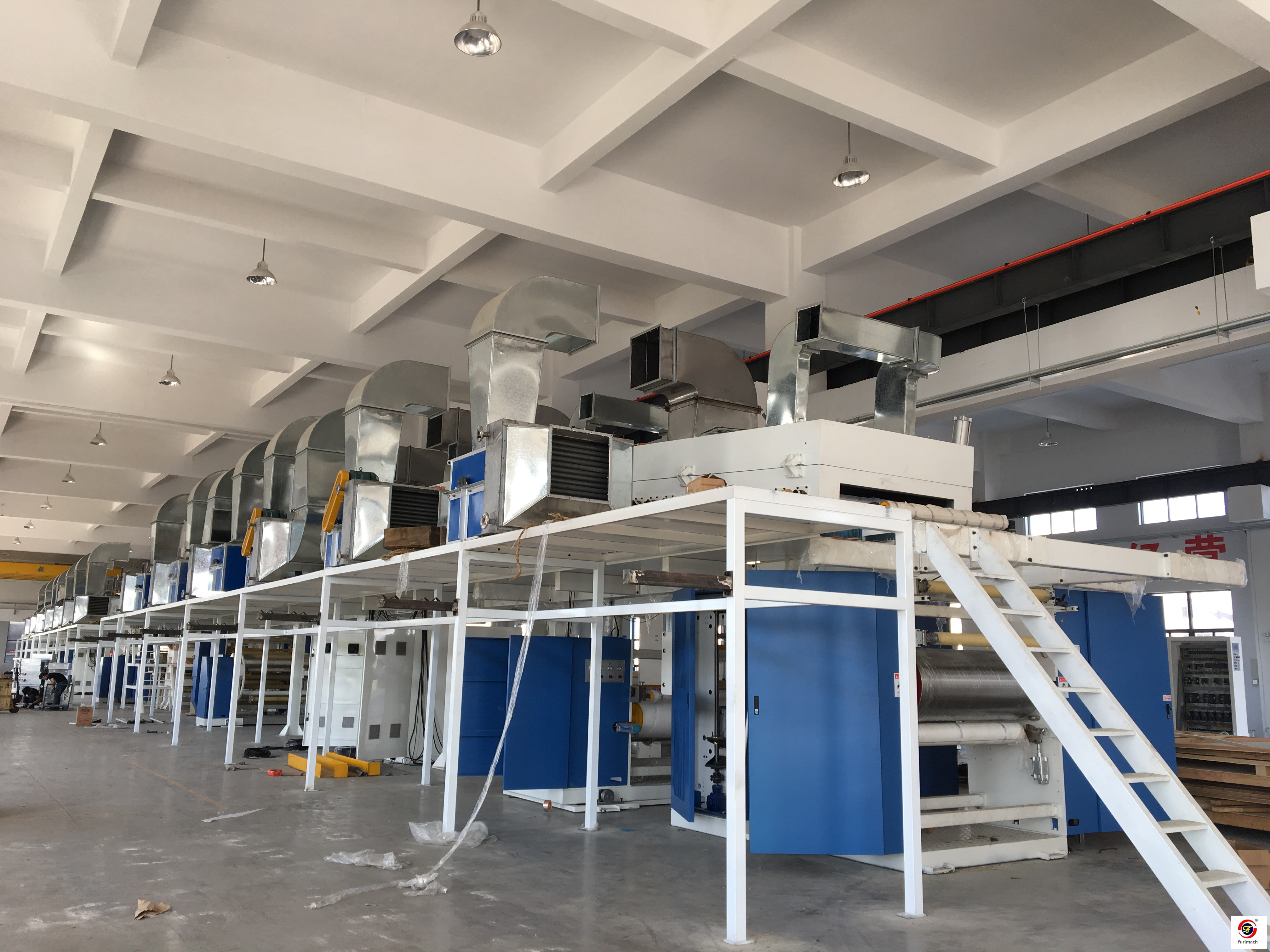

7．External heating shell type oven, inside all SUS304 make, precise filter to ensure it clean.
8．Temperature control by sections, and adjustable upon request
9．Oven dry adopts slit nozzle with high efficiency.
Technical parameter
Model | 500 | 1000 | 1300 | 1600 | |||
Effective width | 500 mm | 1000 mm | 1300 mm | 1600 mm | |||
Machine speed | 15-60m/min | 15-80m/min | 15-80m/min | 15-80m/min | |||
Glue averageness | ±0.001 mm | ||||||
Rewind smoothness | ±1.5 mm | ||||||
Total power | 25-65 HP | 40-85 HP | 60-135 HP | 60-155 HP | |||
Oven length | Upon customer’s request | ||||||
Heating method | Electricity/stem/hot blast/thermal oil
| ||||||
Power source | 380V 50Hz | ||||||
