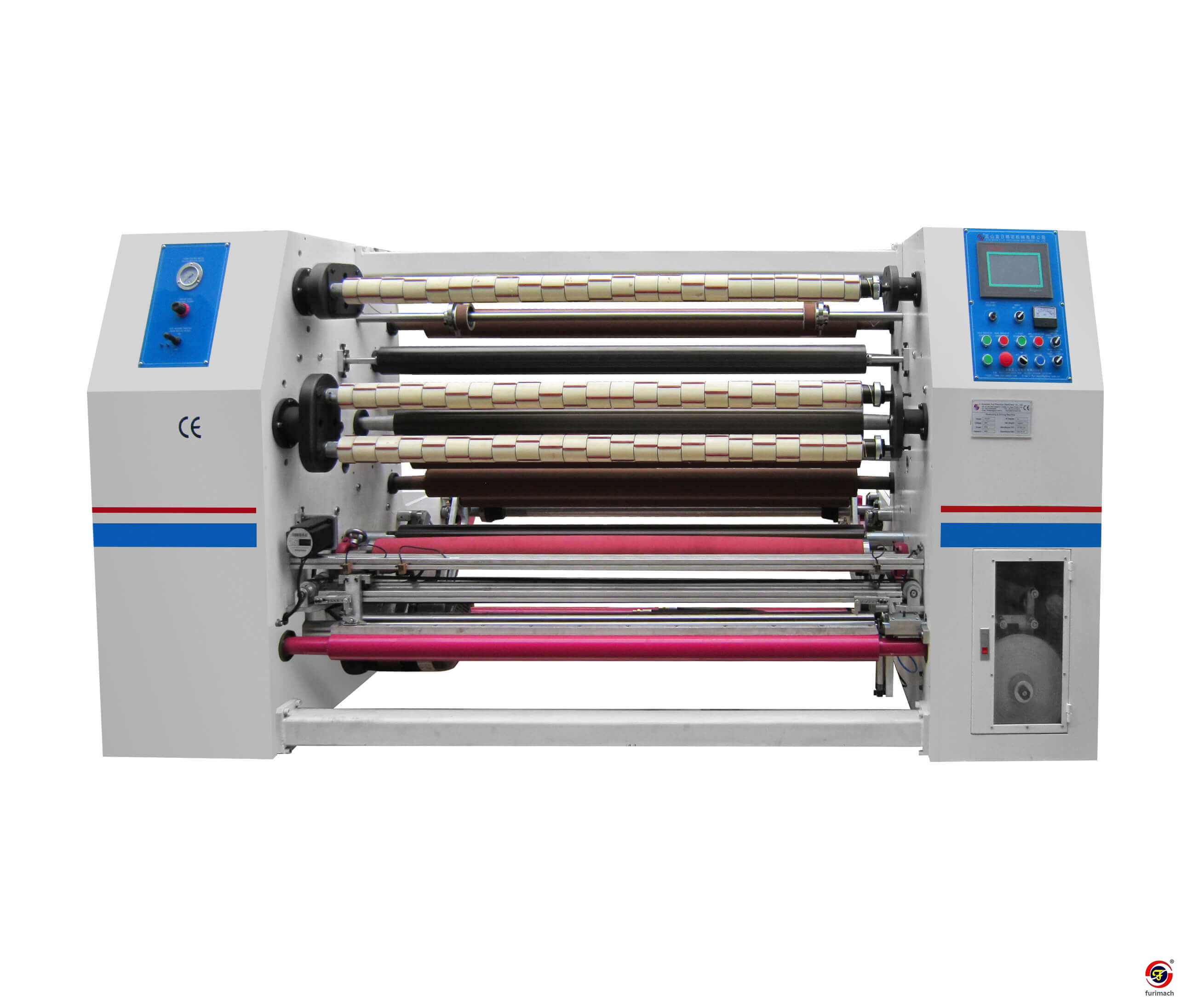

FR-210
FURIMACH
84778000
Feature
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
2. Japan Mitsubishi PLC control system with touch panel operation. |
3. The unwinding tension is adopted with powder brake control. |
4. The banana roller is used to eliminate tape wrinkles during extension and feeding. |
5. Unwind double-press roller can reduce noise. |
6. Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
7. (Optional) Auto tabbing device, jumbo roll up-lifter, noise hood and air score knives for masking tape converting. |
Main Technical Parameters
Model | FR210-1300 | FR210-1600 |
Effective width | 1320 mm | 1620 mm |
Max. unwind diameter | 800mm | 800mm |
Min. slitting width | 10mm | 10mm |
Max. rewind diameter(shaft3") exchange 4 shafts | 180mm | 180mm |
Machine speed | 0-180m/min | 0-180m/min |
slitting blade | 0.2×22×60mm | 0.2×22×60mm |
Main power | 4KW | 4KW |
