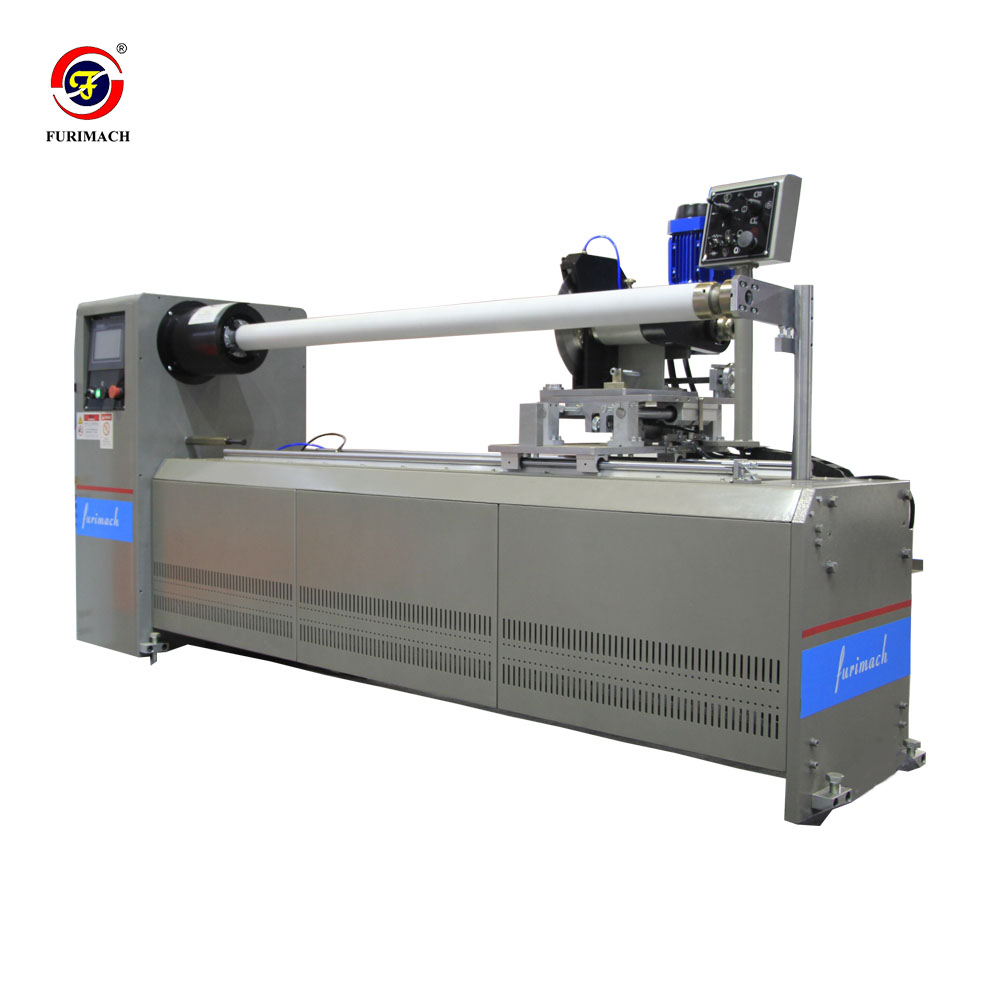

FCK-13, FCK-16
FURIMACH
84778000
Feature
| 1. Main driving part | AC motor with inverter control |
| 2. Central control unit | Programmable central control is used and 20 sizes can be set in one cutting process |
| 3. Operating panel | All functions are operated on the 7" LCD touch panel |
| 4. Motor control system | PLC programmable control |
| 5. Cutting size control | Taiwan servo motor control. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat. |
| 6. Blade feeding control | Pneumatic cylinder control system |
Main Technical Parameters
| Machine width | 1.3M 1.6M |
| Cutting precision | +/-0.1mm |
| Max. Blade O.D. | 300mm |
| Min. Cutting width | 1mm |
| Machine power | 3.7KW |
Feature
| 1. Main driving part | AC motor with inverter control |
| 2. Central control unit | Programmable central control is used and 20 sizes can be set in one cutting process |
| 3. Operating panel | All functions are operated on the 7" LCD touch panel |
| 4. Motor control system | PLC programmable control |
| 5. Cutting size control | Taiwan servo motor control. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat. |
| 6. Blade feeding control | Pneumatic cylinder control system |
Main Technical Parameters
| Machine width | 1.3M 1.6M |
| Cutting precision | +/-0.1mm |
| Max. Blade O.D. | 300mm |
| Min. Cutting width | 1mm |
| Machine power | 3.7KW |
