| Quantity: | |
|---|---|

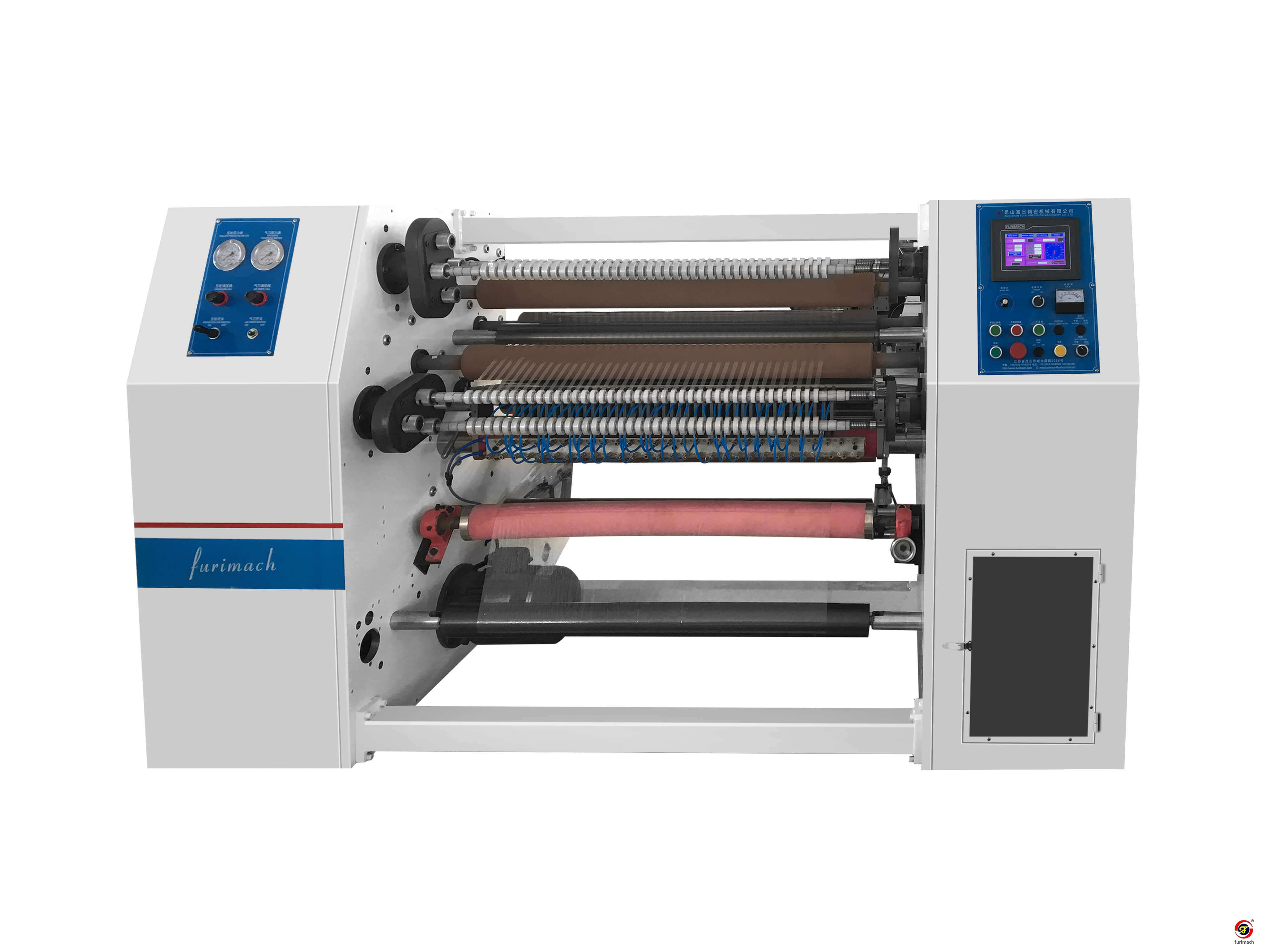

BSS-A
FURIMACH
84778000
Feature
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
2. Japan Mitsubishi PLC control system with touch panel operation. |
3. Automatic shaft exchange: once the rewinding operation is finished, the machine will automatically perform shaft exchanges for convenient and efficient operations. |
4. The banana roller is used to eliminate tape wrinkles during extension and feeding. |
5. Air blades: this unit is fitted with 3" air blades, permitting the slitting of a variety of tapes. The knife positions can be adjusted in left/right directions and the pressure of the air blades can be adjusted to suit tape material variation. |
6. Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
Main Technical Parameters
Effective width | 1020mm |
Max. unwind diameter | 800 mm |
Slitting width | Min. 12mm |
Rewind diameter | 120 mm (1" core) |
I.D. of paper core | 1” |
Machine speed | 0-180 M/min |
Motor | 4KW |
Feature
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
2. Japan Mitsubishi PLC control system with touch panel operation. |
3. Automatic shaft exchange: once the rewinding operation is finished, the machine will automatically perform shaft exchanges for convenient and efficient operations. |
4. The banana roller is used to eliminate tape wrinkles during extension and feeding. |
5. Air blades: this unit is fitted with 3" air blades, permitting the slitting of a variety of tapes. The knife positions can be adjusted in left/right directions and the pressure of the air blades can be adjusted to suit tape material variation. |
6. Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
Main Technical Parameters
Effective width | 1020mm |
Max. unwind diameter | 800 mm |
Slitting width | Min. 12mm |
Rewind diameter | 120 mm (1" core) |
I.D. of paper core | 1” |
Machine speed | 0-180 M/min |
Motor | 4KW |
