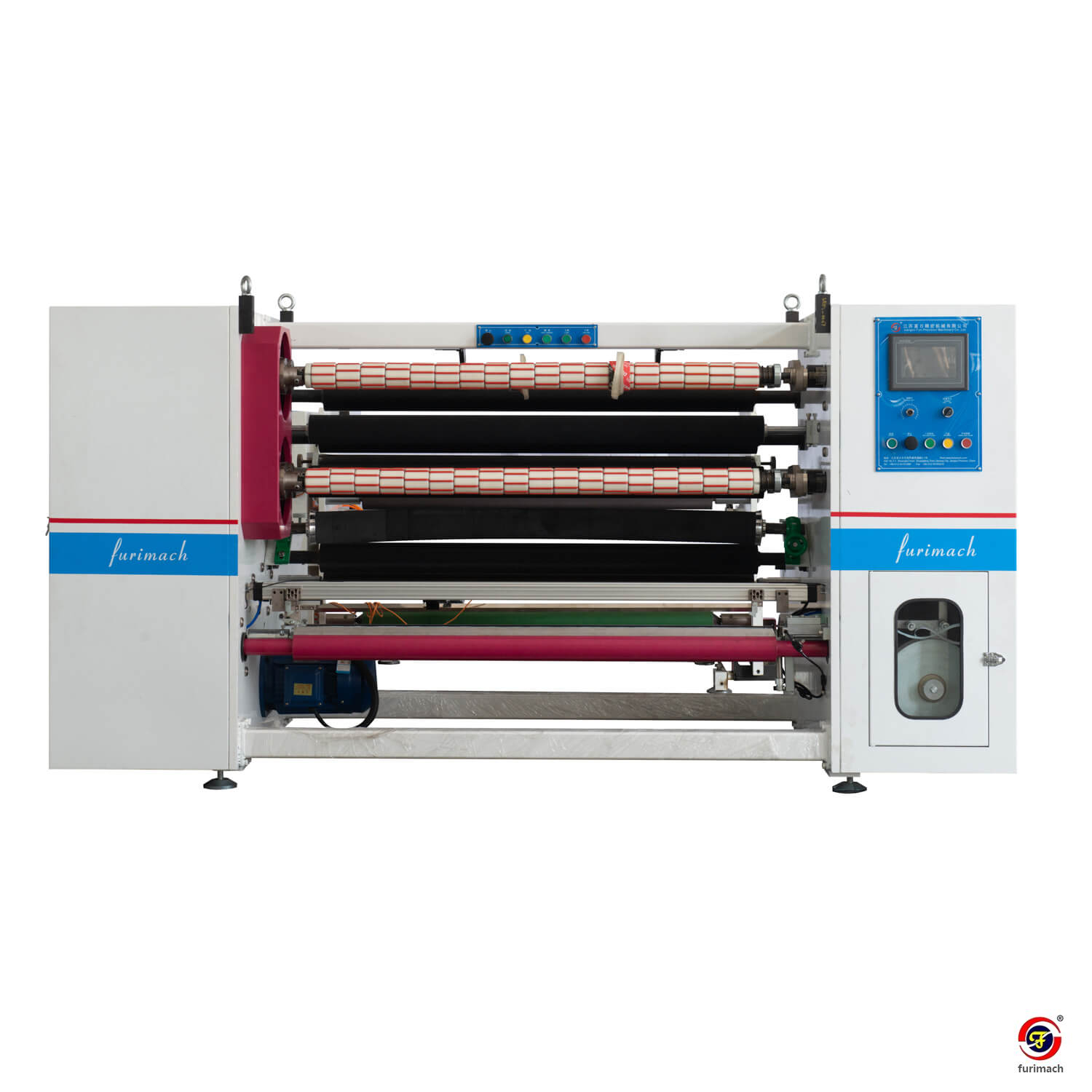

BSP-S
FURIMACH
84778000
Feature
| 1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
| 2. Machine non-stop when shaft loading/unloading |
| 3. The unwinding tension is adopted with powder brake control. |
| 4. The banana roller is used to eliminate tape wrinkles during extension and feeding. |
| 5. Fast shafts lock system for easy change of tape winding shafts |
| 6. Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
| 7. (Optional) Auto tabbing device, jumbo roll up-lifter, noise hood and low-noise roller system |
Main Technical Parameters
| Model | BSP-S |
| Effective width | 1300 mm/1600mm |
| Max. unwind diameter | 800mm |
| Min. slitting width | 12mm |
| Max. rewind diameter(shaft3") exchange 4 shafts | 180mm |
| Machine speed | 0-180m/min |
| slitting blade | 0.2×22×60mm |
| Main power | 4KW |
Feature
| 1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
| 2. Machine non-stop when shaft loading/unloading |
| 3. The unwinding tension is adopted with powder brake control. |
| 4. The banana roller is used to eliminate tape wrinkles during extension and feeding. |
| 5. Fast shafts lock system for easy change of tape winding shafts |
| 6. Spool trim winder is used for edge trimming collect and if tape gets broken during running, machine will auto stop. |
| 7. (Optional) Auto tabbing device, jumbo roll up-lifter, noise hood and low-noise roller system |
Main Technical Parameters
| Model | BSP-S |
| Effective width | 1300 mm/1600mm |
| Max. unwind diameter | 800mm |
| Min. slitting width | 12mm |
| Max. rewind diameter(shaft3") exchange 4 shafts | 180mm |
| Machine speed | 0-180m/min |
| slitting blade | 0.2×22×60mm |
| Main power | 4KW |
