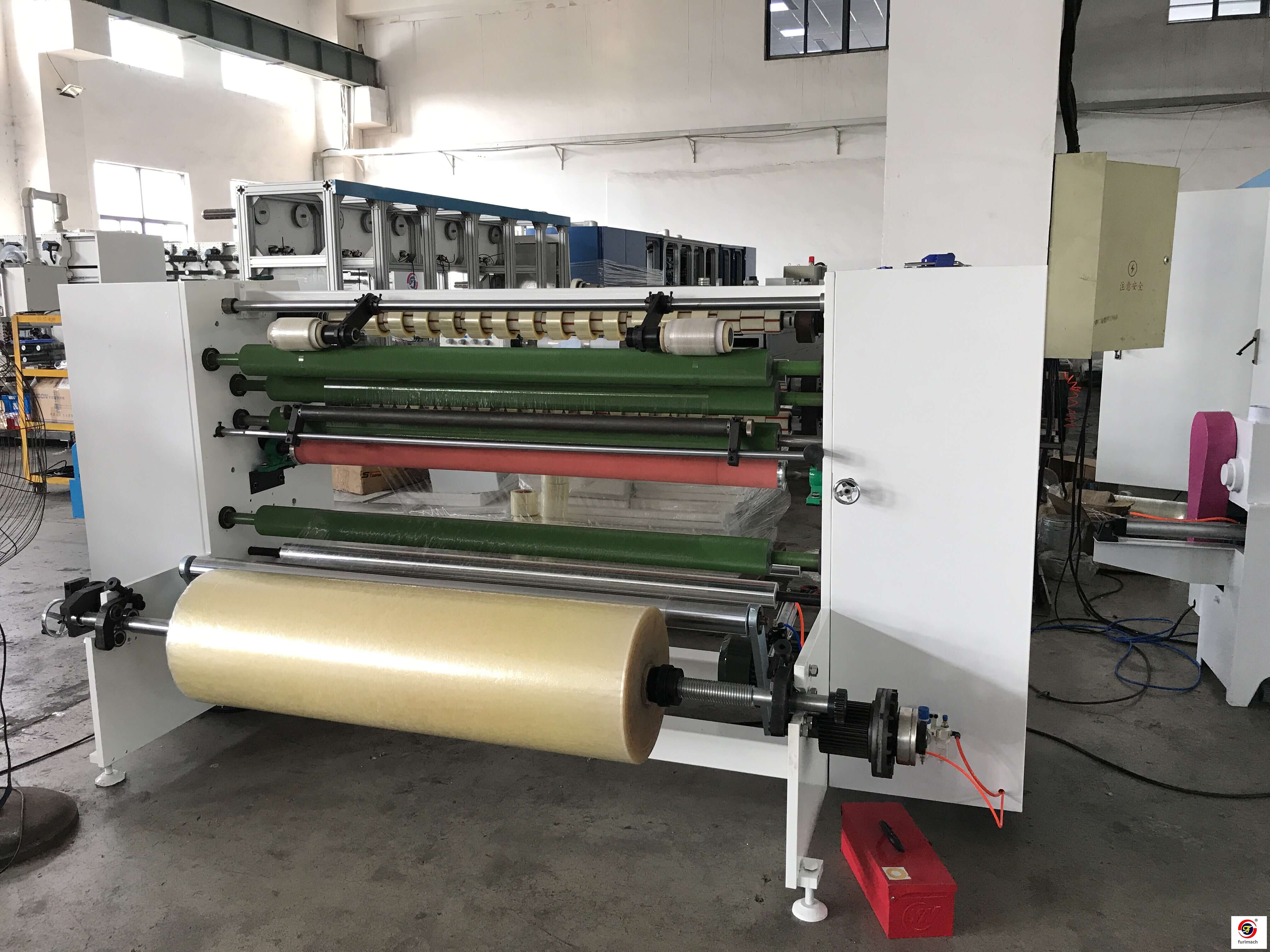

BSP-L
FURIMACH
84778000
Application
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved. |
2. Continuously variable speed regulating of inverter and three-step length setting provide smooth rewinding operation to ensure accurate rewinding length. It can automatically decelerate and stall when operating at high speed. |
3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force. |
4. The banana roller is used to eliminate tape wrinkling during extension and feeding. |
5.Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling. |
6.Edge trimming system: spool trim winder |
Main Technical Parameters
Model | BSP-L 1.3M | BSP-L 1.6M |
Effective width | 1300 mm | 1600 mm |
Max. unwind diameter | 600mm | 600mm |
Min. slitting width | 12mm | 12mm |
Max. rewind diameter(shaft3") exchange 4 shafts | 150mm | 150mm |
Machine speed | 0-180m/min | 0-180m/min |
Slitting blade | 0.2×22×60mm | 0.2×22×60mm |
Main power | 4KW | 4KW |
