BPA-1511
FURIMACH
84778000
Feature

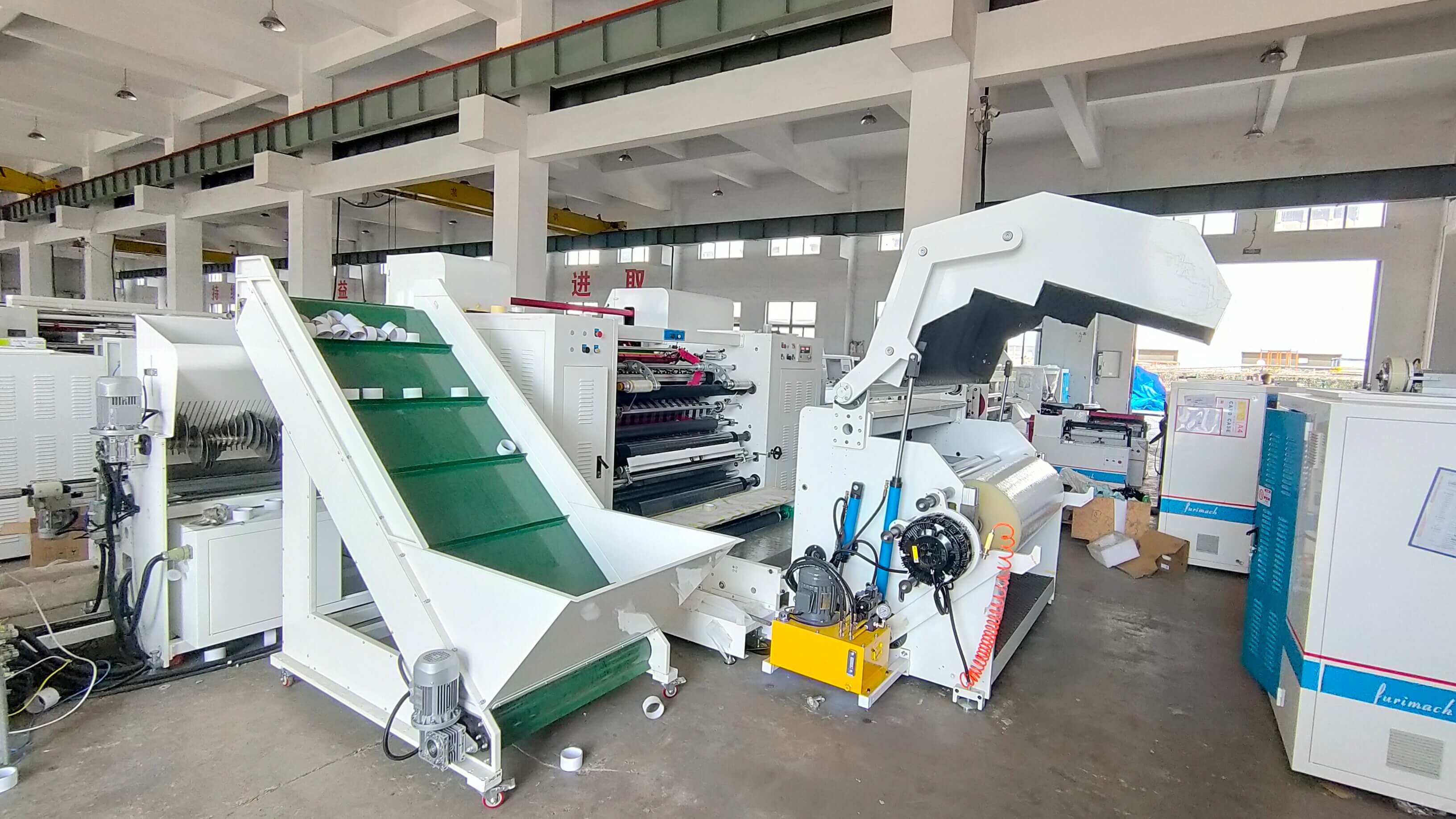

BPA-1511 fully automatic bopp adhesive tape slitting machine adopts four-shaft exchange plastic slip ring center winding method. The whole process of fixed-length winding, auto end paper tabbing, auto tape cut-off, rotating and finishing, manipulator handling, paper core loading, finished tape unloading all fully automatic.
Technical Parameters
| Max. rewind O.D. | 150mm | Machine width | 1.3M/1.6M |
| Max. unwind O.D. | 800mm | Paper core I.D. | 3 " |
| Min. slitting width | 18mm | Max. speed | 300M/Min |
| Air source | 0.8Mpa | Power source | 380V 50HZ 3P |
Feature
BPA-1511 fully automatic bopp adhesive tape slitting machine adopts four-shaft exchange plastic slip ring center winding method. The whole process of fixed-length winding, auto end paper tabbing, auto tape cut-off, rotating and finishing, manipulator handling, paper core loading, finished tape unloading all fully automatic.
Technical Parameters
| Max. rewind O.D. | 150mm | Machine width | 1.3M/1.6M |
| Max. unwind O.D. | 800mm | Paper core I.D. | 3 " |
| Min. slitting width | 18mm | Max. speed | 300M/Min |
| Air source | 0.8Mpa | Power source | 380V 50HZ 3P |
